⚙️ Settings

The settings section of the software is quite diverse and will be continuously updated with more personalization options as features expand.

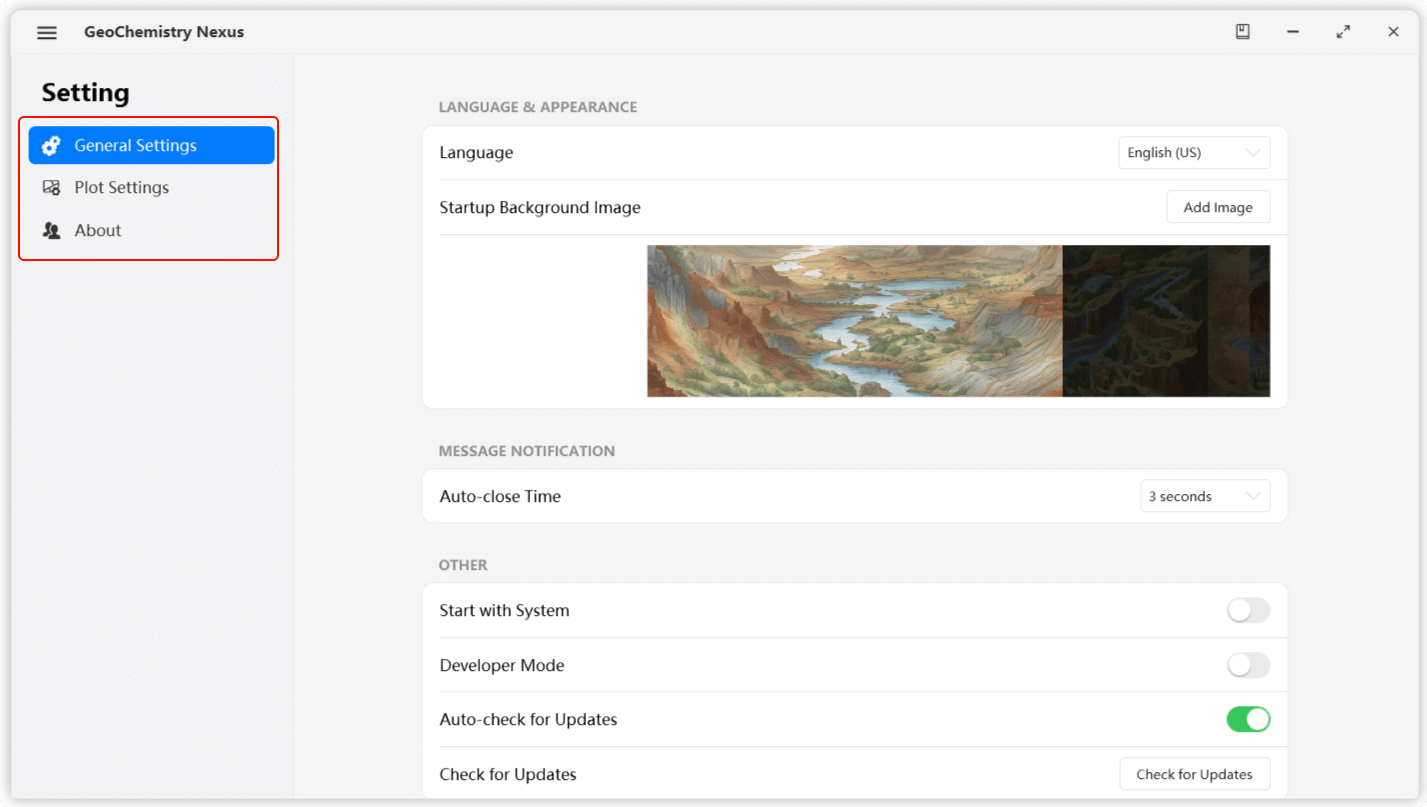

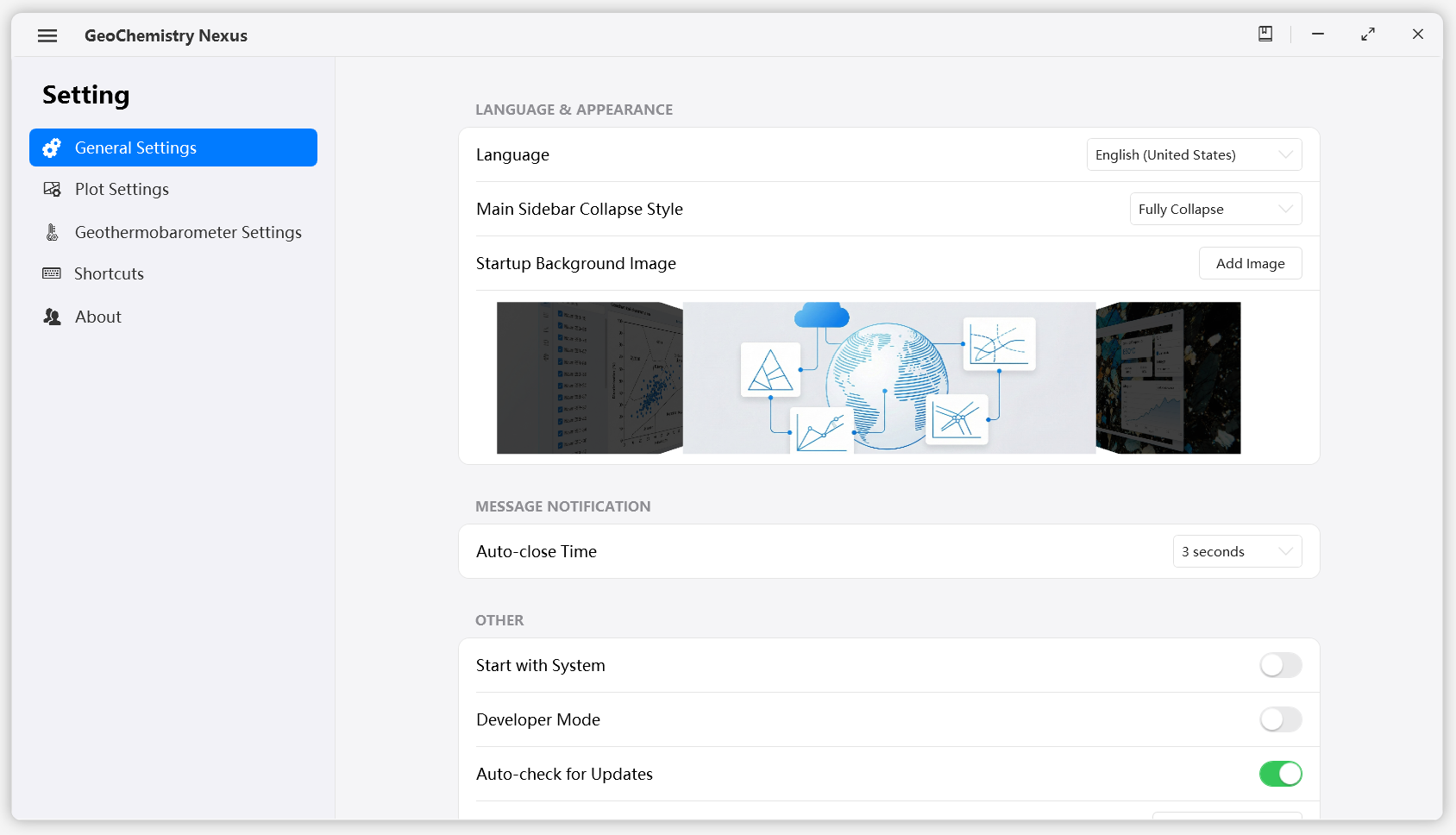

General Program Settings​

Settings are mainly divided into four parts: File Paths, Internationalization & Personalization, Message Notifications, and Others. Below is a brief description of the main settings:

tutorial_settings1

🌍 Language & Appearance​

  • Language: Currently supports Simplified Chinese, English, German, Spanish, Japanese, Korean and Russian.
  • Startup Background Image: The background image displayed when the software starts.
info

For language support, if you’d like to help localize for your country, we warmly invite you to join our translation efforts! Most of the current translations have been assisted by AI, which means some parts may be inaccurate — your help is greatly needed and appreciated.

🗨️ Message Notifications​

  • Auto-close Duration: The duration for which message notification pop-ups automatically close during software operation. Please note that error and warning messages need to be closed manually.

⚙️ Others​

  • Start with System: The software will start automatically when the system boots.
  • Developer Mode: This mode provides debugging features for developers. Non-developers are advised not to enable it to avoid unintended operations.
  • Auto Check for Updates: The software will automatically check for updates upon startup; however, due to server issues, this function is temporarily disabled and will be restored in a future version.
  • Exit Method: The software can be exited in two ways: Direct Exit or Minimize to System Tray. If you choose to minimize to the tray, you can right-click the tray icon and select Exit to close the software.

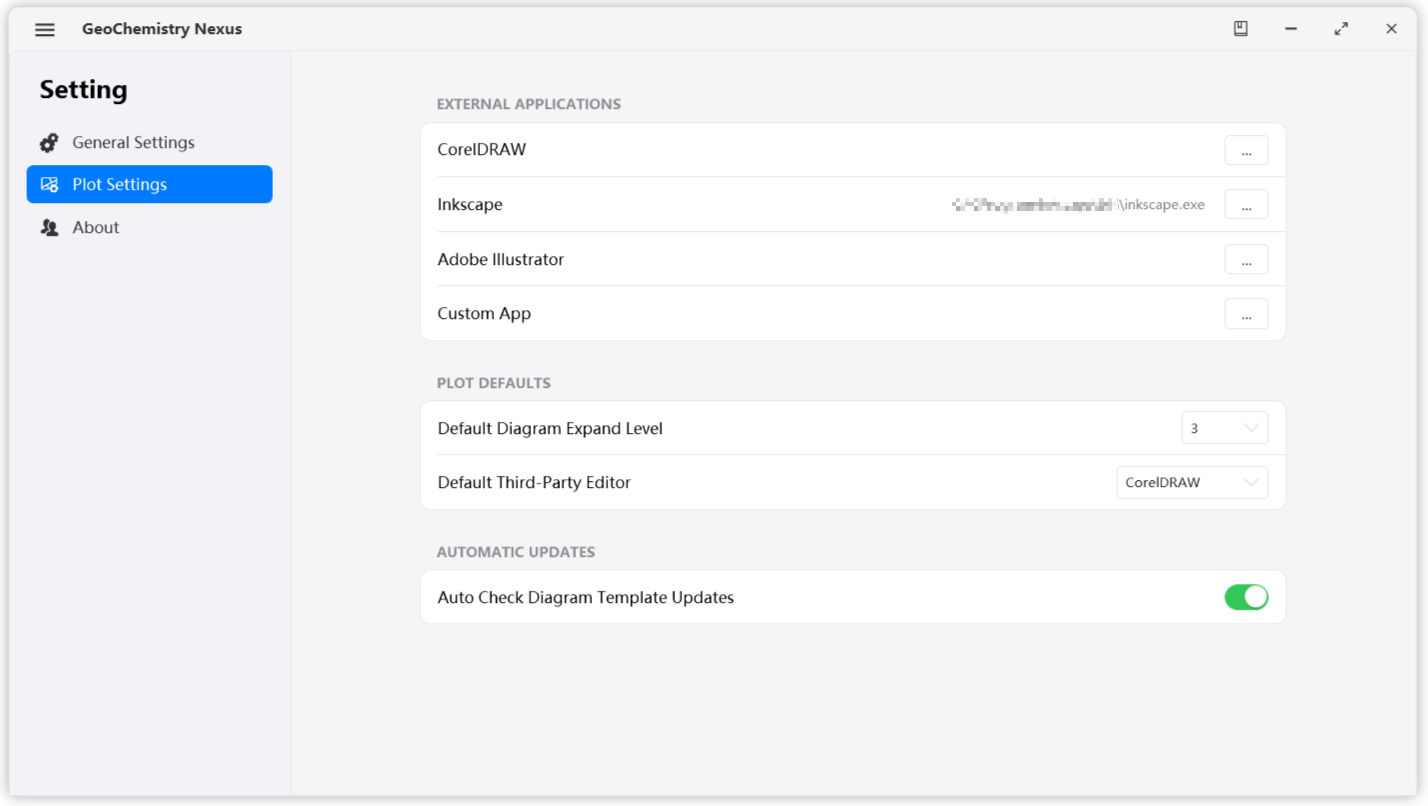

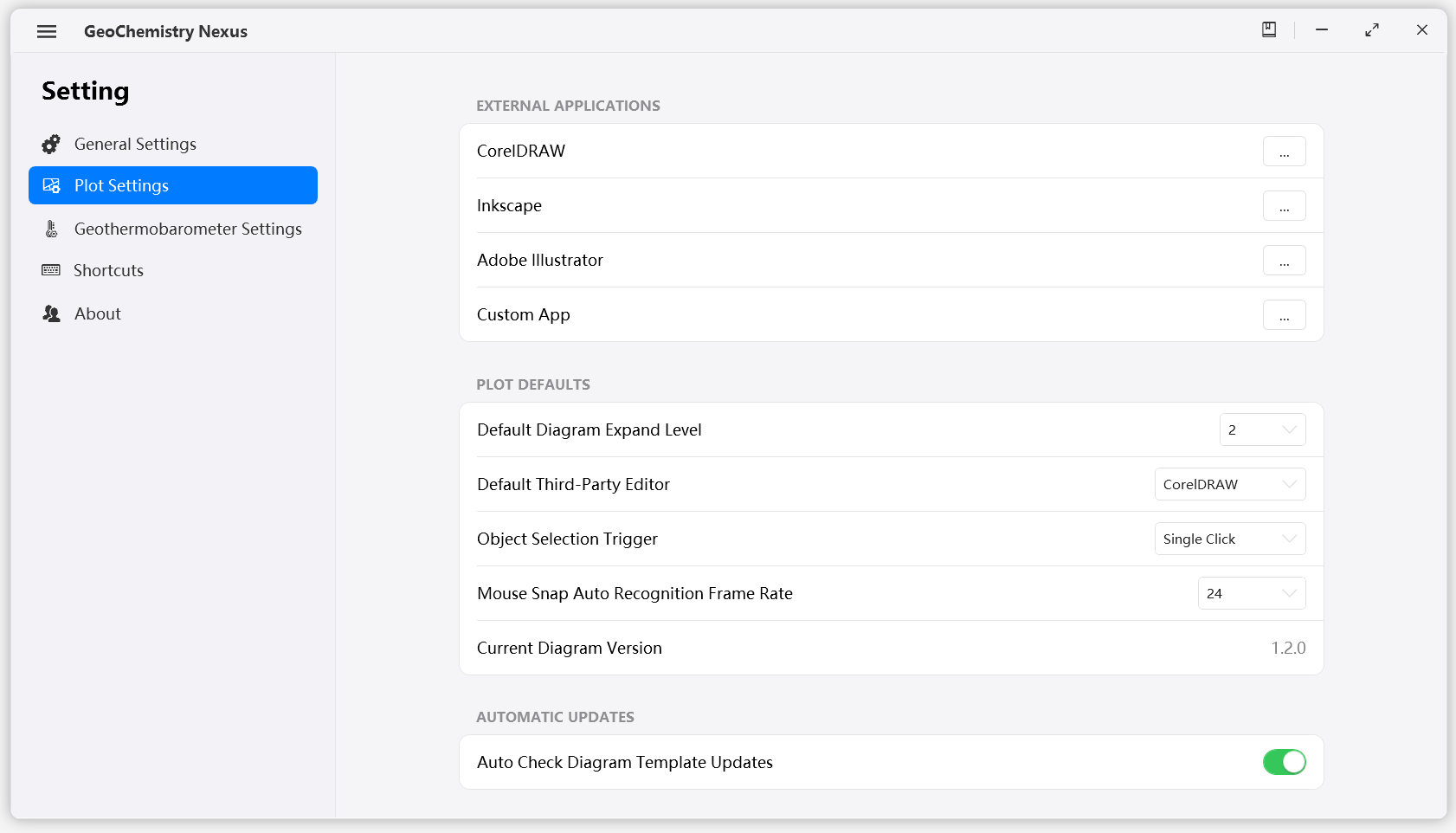

Plotting Module Settings​

The plotting module settings specifically address functions within the plotting module, including but not limited to:

  • Third-party program path configuration
  • Default third-party programs
  • Default loading language for diagrams
  • Automatic updates for diagram templates and classification structures

tutorial_settings2

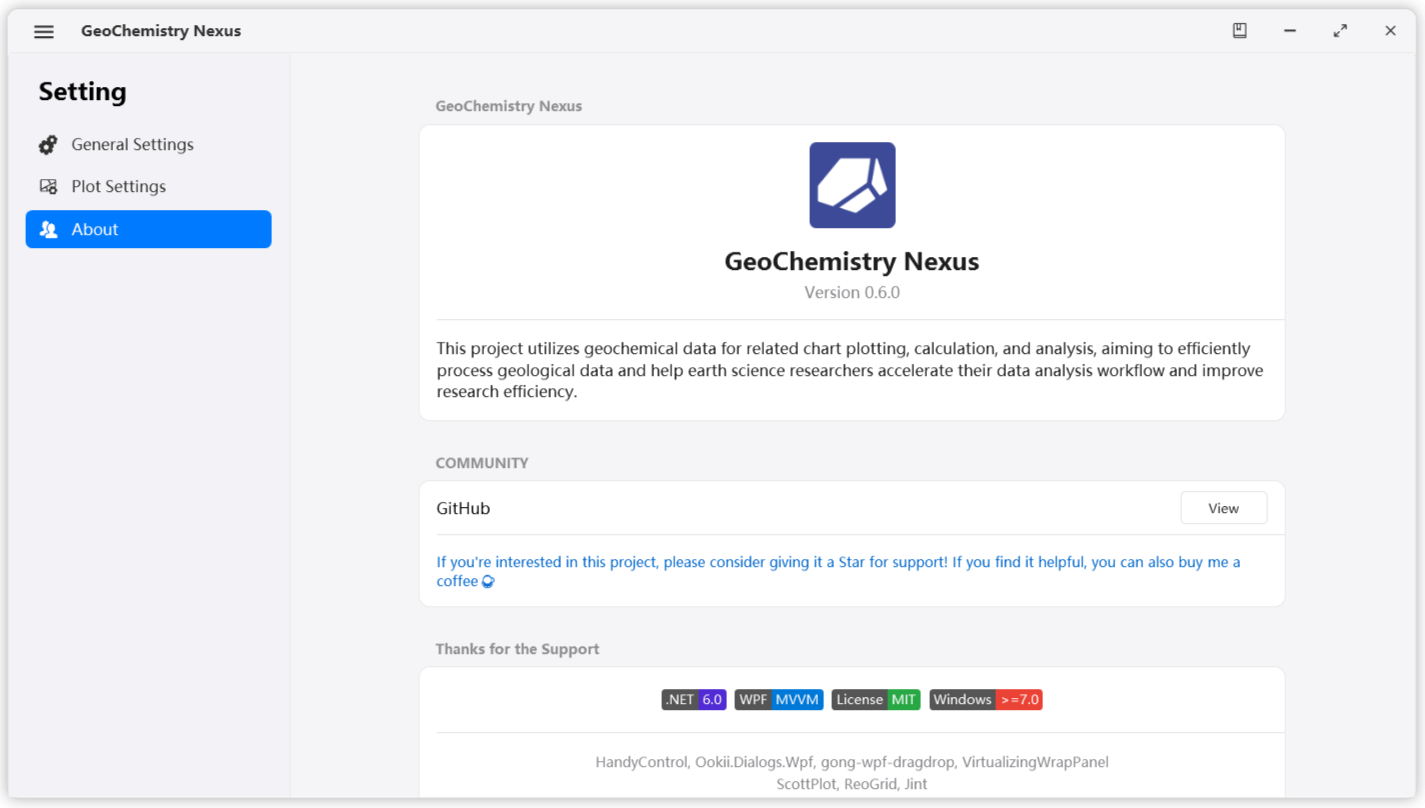

About​

The About page of the program.

tutorial_settings3
